Description：

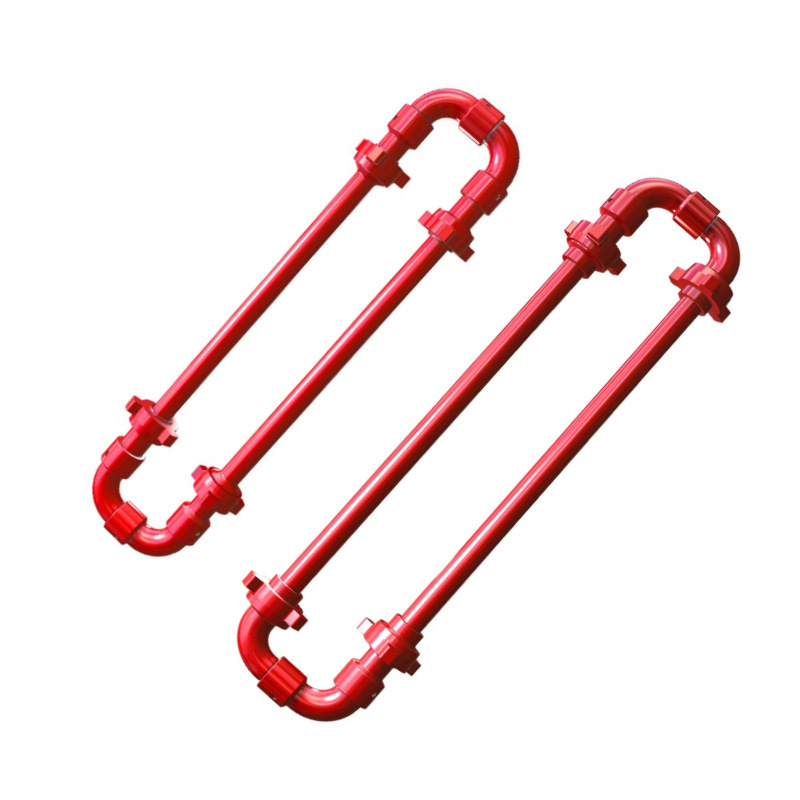

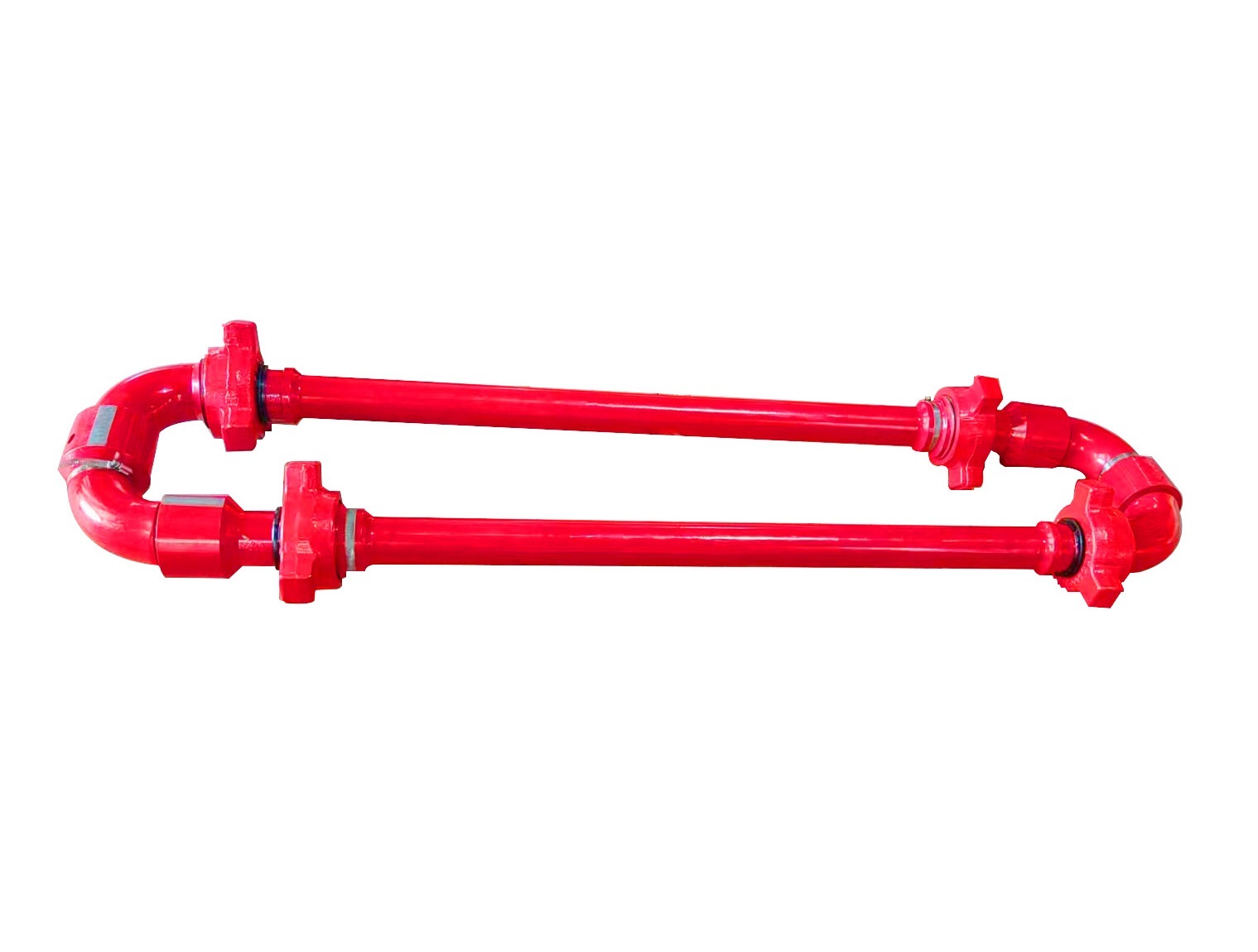

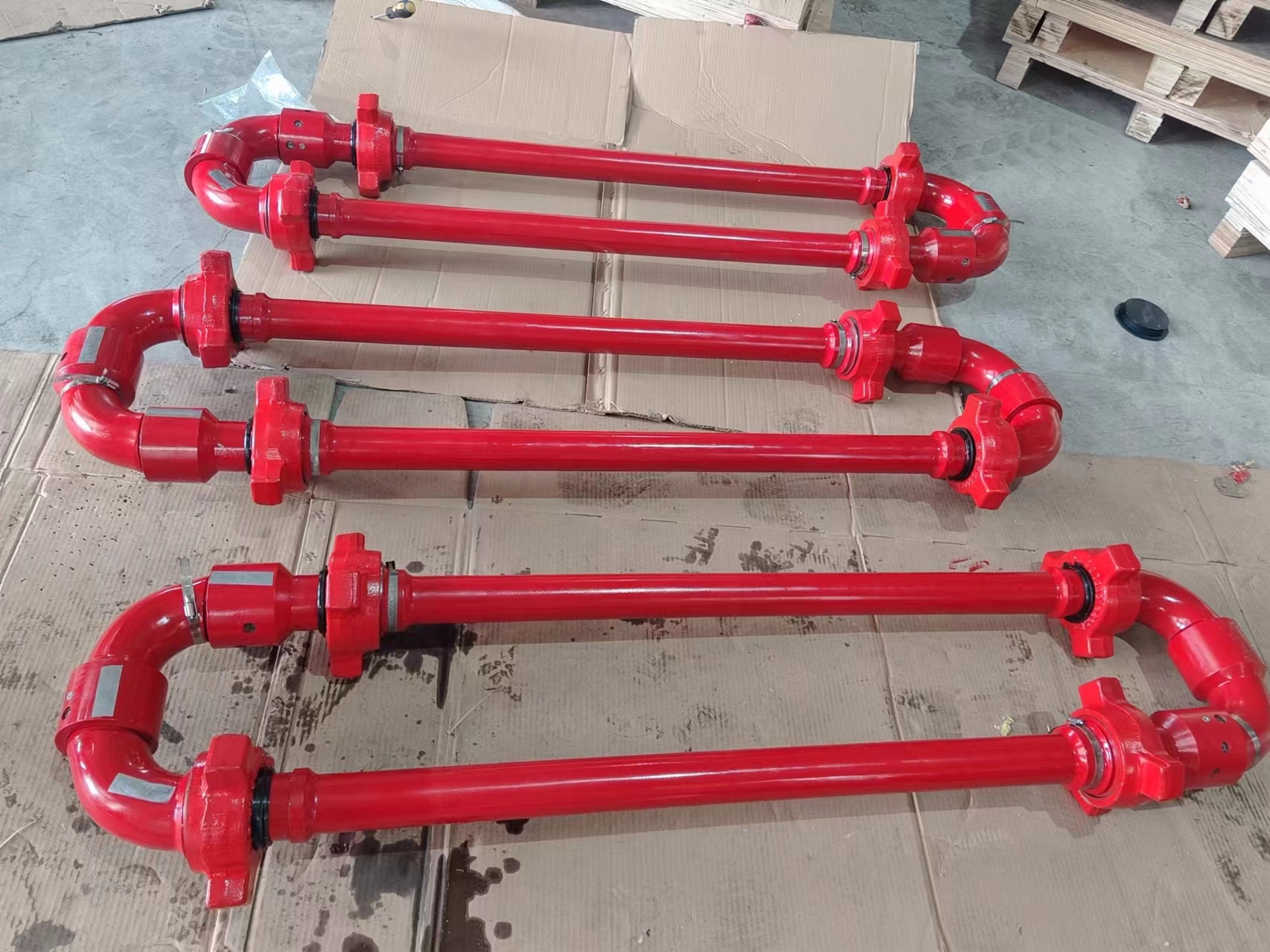

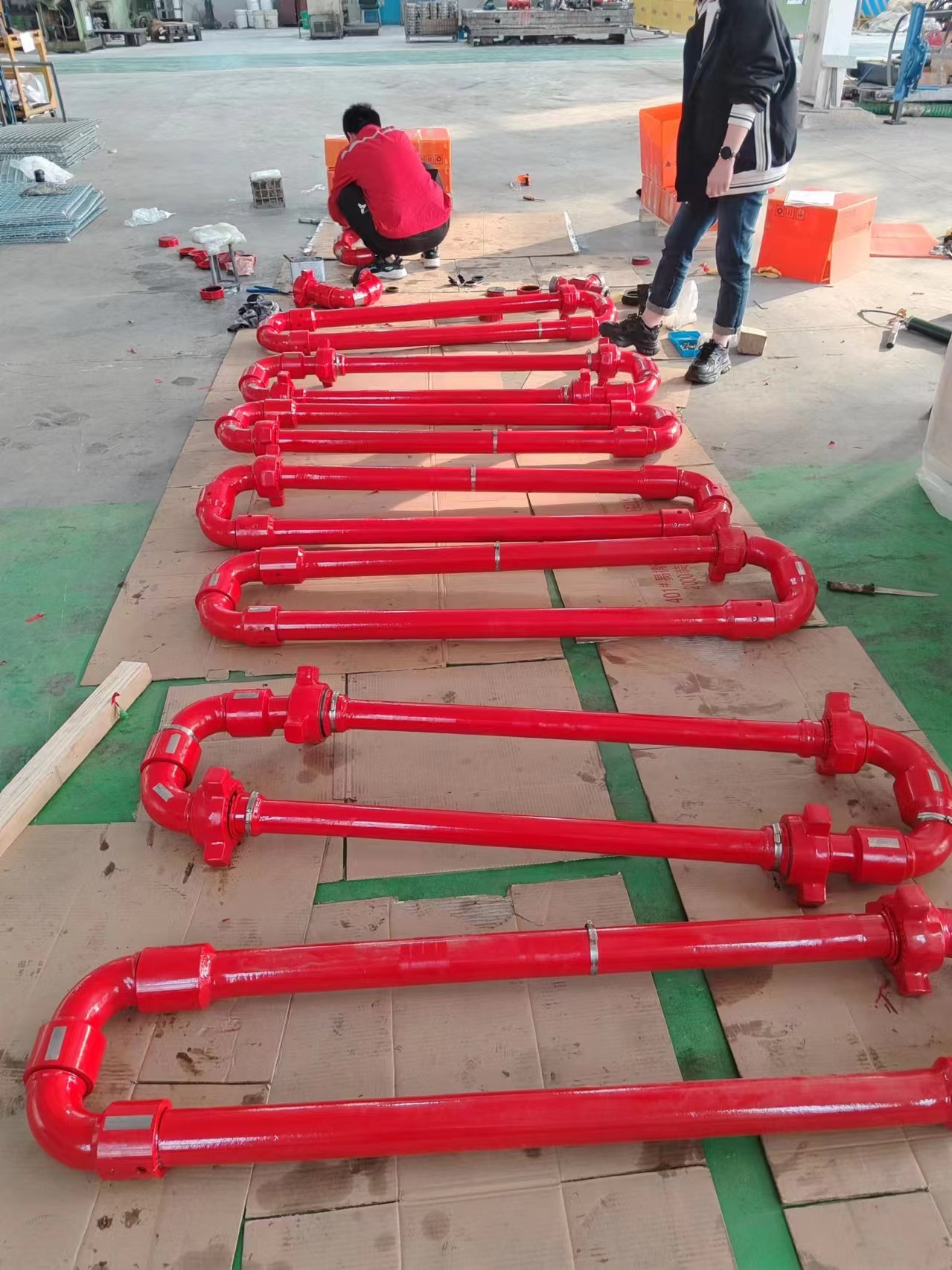

Hose loops are suitable for various high-pressure operations, including discharge pipelines, liquid transportation pipelines, well test pipelines, and cementing (6000 PSI to 15000 PSI) mud pipe fittings. They are designed to transport liquids under high-pressure working conditions. The hose loop consists of a movable elbow and a straight pipe assembly, making it easy to stack, transport, and store. It features flexibility, impact resistance, vibration resistance, and large flow capacity, and is widely used by swivel joints manufacturers and in systems with integral joints and high-pressure pup joints.
The hose loop manifold is available in three forms: short radius, long radius, and live loss type. Specifications include 2" and 3" sizes with working pressures ranging from 42 MPa to 105 MPa (6000 PSI to 15000 PSI). The typical configuration includes 50° and 10° elbows, often combined with customed swivel joints, adjustable joints, and other flow control components provided by leading swivel joints suppliers.
The hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc., making it compatible with swivel joints and integral joints used in high-pressure environments.
The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and with high sealing performance. It can also integrate with high-pressure pup joints and adjustable joints for modular applications.

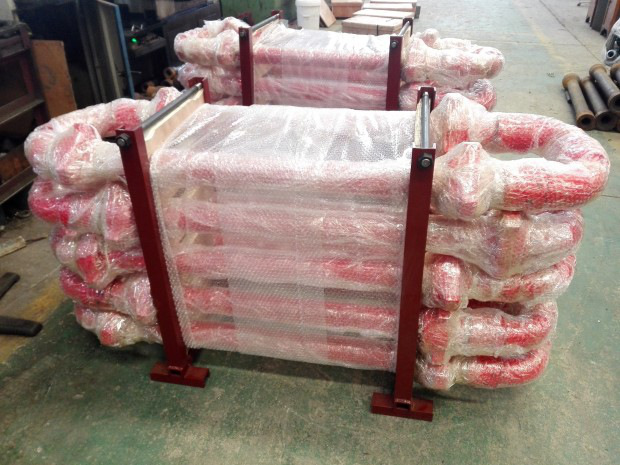

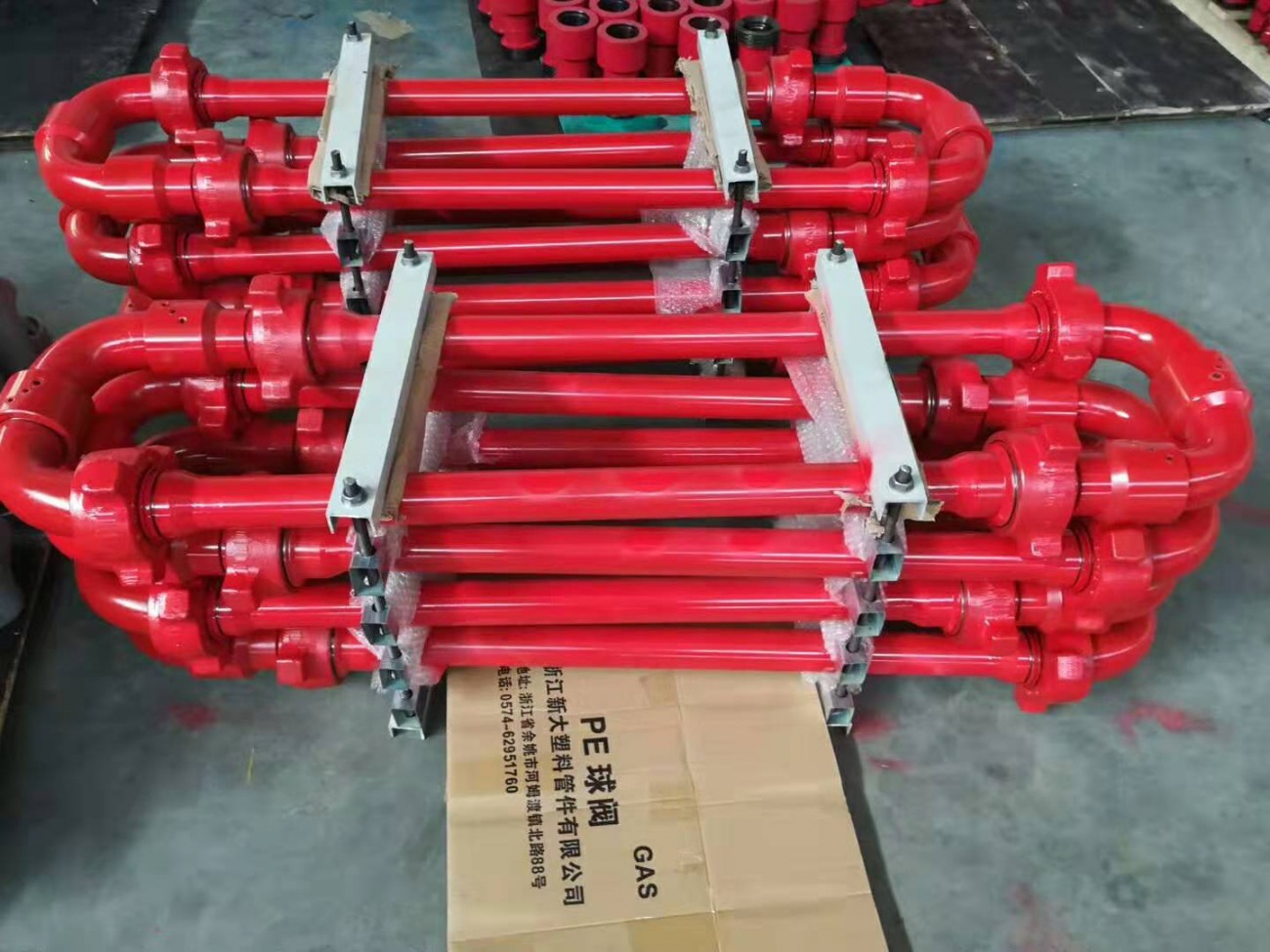

It has the advantage of easy fold ability, convenient transportation and storage, and is commonly paired with customed swivel joints in flexible pipeline assemblies.
The thread joint conforms to international specifications, meeting compatibility standards required by professional swivel joints manufacturers.
Components&Type of Connection：
- Type 50 long Radius Swivel Joint +integral Straight Pipe
2"FIG602 2"FIG1002 2"FIG1502 3"FIG602 3"FIG1002 3"FIG1502
Use Conditions：Standard
- Type 10 Long Radius Swivel Elbow+integral Straight Pipe
2"FIG602 2"FIG1002 2"FIG1502 3"FIG602 3"FIG1002 3"FIG1502
Use Conditions：Standard
2"FIG1502 3"FIG1502
Use Conditions：Standard
Material:
Standard: Alloy Steel Surface: Painted
Product AdvantagesAdaptable Configurations for Diverse RequirementsWhether you need short or long radius, or live‑loss versions, Exwell’s Hose Loop is available in multiple configurations—including swivel joint plus straight pipe and integral hose loop—allowing you to match system geometry and operational demands precisely.High‑Pressure Reliability with Rugged ConstructionRated for pressures between 42 MPa and 105 MPa, crafted from alloy steel with robust surface coating, this component withstands rigorous field conditions, ensuring long-term service and dependable operation under extreme stress.Easy Handling with Secure Connection IntegrityDesigned for foldability and transport, the union‑type connection allows quick assembly/disassembly while offering high sealing performance and crush resistance. This enhances operational efficiency while maintaining flow control reliability.Application ScenariosCementing and Well‑Test OperationsIn cementing or well‑test pipelines, where pressure fluctuations and movement are common, the Hose Loop’s flexibility, shock absorption, and vibration resistance ensure stable and continuous flow under demanding pressure conditions.Temporary High‑Pressure Fluid TransportFor modular operations involving temporary fluid lines—such as displacement or circulation—its foldable design eases deployment and retrieval, while high-flow capacity and pressure rating enable efficient field usage without compromising integrity.Compact Storage and Site LogisticsOn offshore or space-constrained sites, the Hose Loop simplifies logistics: foldability reduces footprint, and durable union connections ensure fast setup and breakdown, ideal for bedding into existing systems with swivel joints or integral joints.
